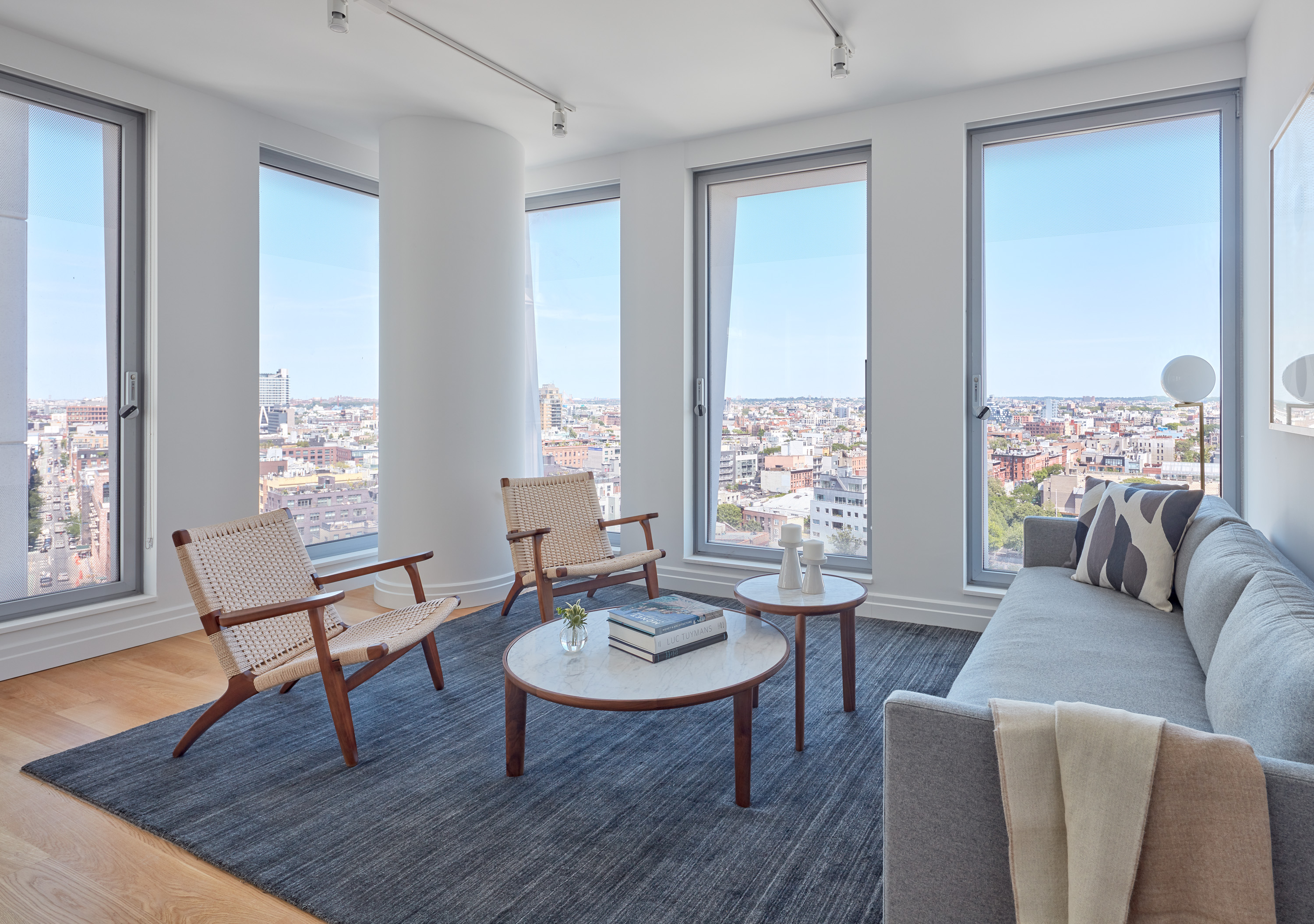

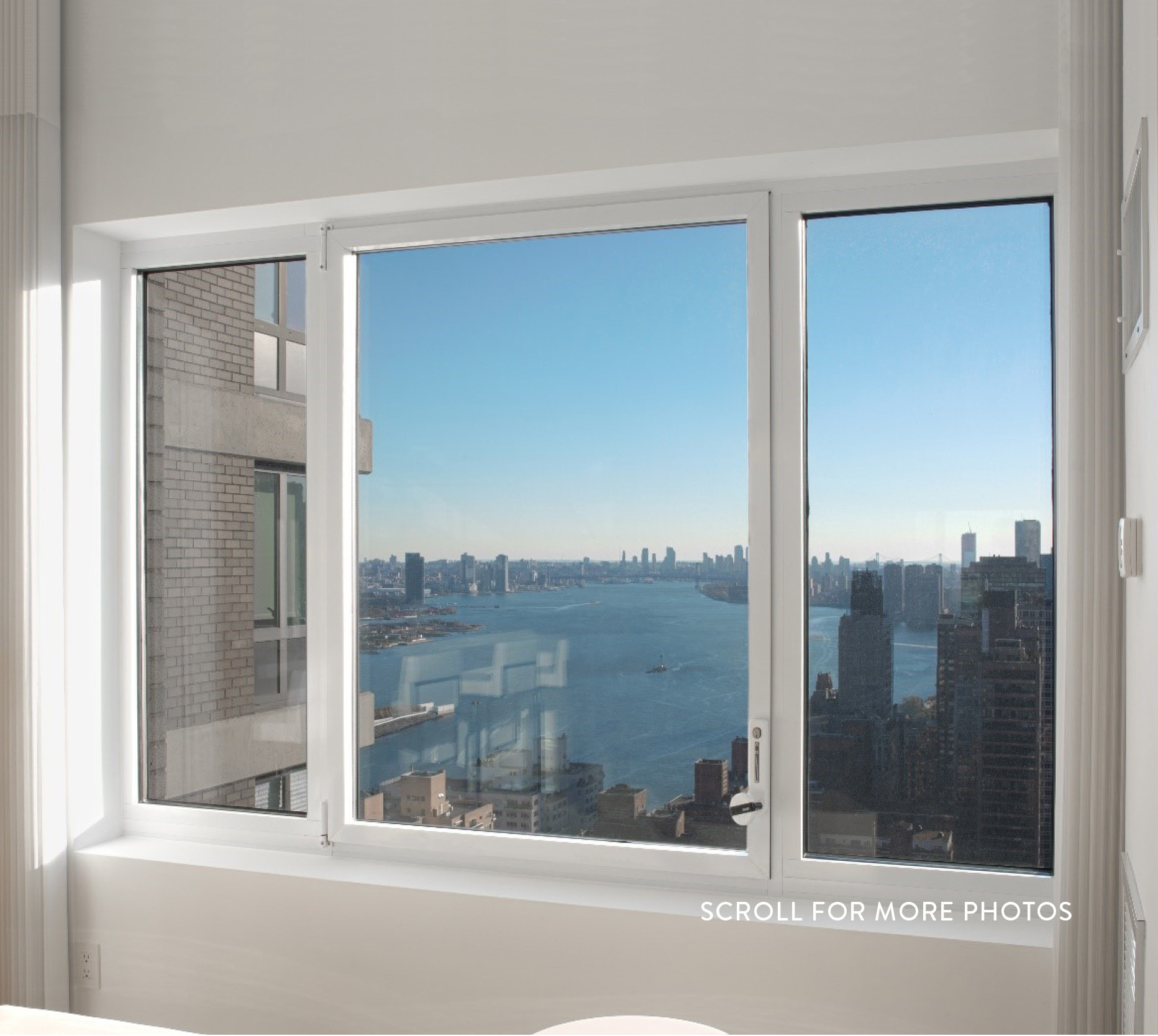

Series 1200 Tilt & Turn Crank

https://smartbim-library-production.s3.amazonaws.com/manufacturers/7994275c-f23e-4028-87a2-3d97c506f430/products/db563f6b-67f8-44ae-b20e-431857d95979/5759ce25-2397-408c-ba14-900a6220134a/Series 1200 - One South First.jpg

Category

Tilt & Turn | Crank

Description


A cousin of our Series 500 Tilt & Turn, the Series 1200 takes an already great window and optimizes it to near perfection. Utilizing state-of-the-art crank handle hardware, the Series 1200 is capable of operating very large windows with ADA-friendly efficiency. This allows for ultra heavy windows to keep out the noisy street sounds. The 1200 achieves maximal operation due to its high performing hardware system. It also has a modulating operability feature that allows residents to open - and keep open - the window however little or much they want to.

Features


- Architectural / Commercial

- Crank operator allows for micro-adjustment of sash position

- Structural and bead glazed options available

- Safe cleaning from interior

- Extruded corner key construction

- Glazing: 1” - 1 ¼” insulating glass

- Improved thermal performance

- Improved acoustical ratings

- Continuous gasketed weather-stripping for unsurpassed performance

- Pressure equalized frame design

- 2 ¾" - 3 ¼” frame depth

- Thermally insulated I-Strut frames

PropertyValue
Water Resistance12 PSF
Air InfiltrationASTM E 283 < 0.01 CFM / ft² @ 6.24 PSF
OperationTilt & Turn / Roto Crank
AAMA RatingATD-AW-90
Thermal PerformanceU Value & SGHC Range from Code & better depending on Glass Specified
System Depth2 ¾" - 3 ¼”

Product Resource download links.

SERIES 1200-2.75_FRAME DEPTH 2.75 INCH_DETAILS-DWG

SERIES 1200-2.75_FRAME DEPTH 2.75 INCH_DETAILS-PDF

SERIES 1200-3.25_FRAME DEPTH 3.25 INCH_DETAILS-DWG

SERIES 1200-3.25_FRAME DEPTH 3.25 INCH_DETAILS-PDF
