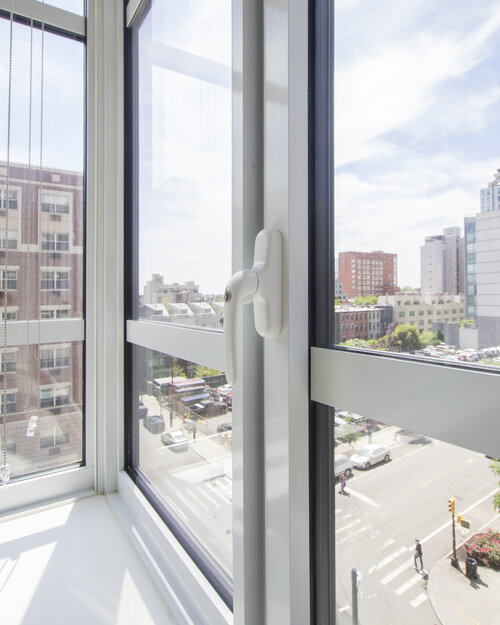

Series 500 Window Wall - Inswing Casement - Tilt & Turn - Fixed

https://smartbim-library-production.s3.amazonaws.com/manufacturers/7994275c-f23e-4028-87a2-3d97c506f430/products/a4e0a5be-44e7-4bf4-8fcf-ca66ad92ad4c/71f13f41-041d-4128-834c-b46442d90df7/500 Window Wall e.png

Category

Window Wall

Description


Skyline Windows’ 500 Series of window wall products offer a variety of depth and configurations to meet each project’s aesthetic and performance needs with combinations of fixed lights, in-swing vents and/or dual action (tilt & turn) vents as required by design. Skyline Windows’ 1700 Series Terrace Doors and 2000 Series Lift & Slide doors can be seamlessly incorporated into the window wall system to provide access to balconies, terraces, or roof-top amenity spaces.

Features


- Architectural / Commercial / Historical

- Narrow uniform profiles

- Structural glazing on all operable vents

- Center frame "Goose-Neck" Gasket Design

- Glazing: 1 ¼” insulated glass

- Triple muntin capability; full simulated divided lites

- Compression glazing gasket for improved thermal and acoustical performance

- 4 1/2” system depth available

- Thermal bar insulated frames and sash members

- Variety of standard and custom hardware designs

- High performance AAMA Two Tone finishes

- Intergrated Terrace Doors designed as part of overall system

PropertyValue
System Depth3.25", 4", or 4.5"
AAMA RatingAW-PG100
Air InfiltrationASTM E 283 < 0.01 CFM / ft² @ 6.24 PSF
Water ResistanceASTM E331 - 15PSF / ASTM E547 - 15PSF
Thermal PerformanceU Value & SGHC Range from Code & better depending on Glass Specified
OperationInswing / Tilt & Turn / Fixed

Product Resource download links.

500_WW_4.5.dwg

500_WW_4.5.pdf
