Product Information

Product Details

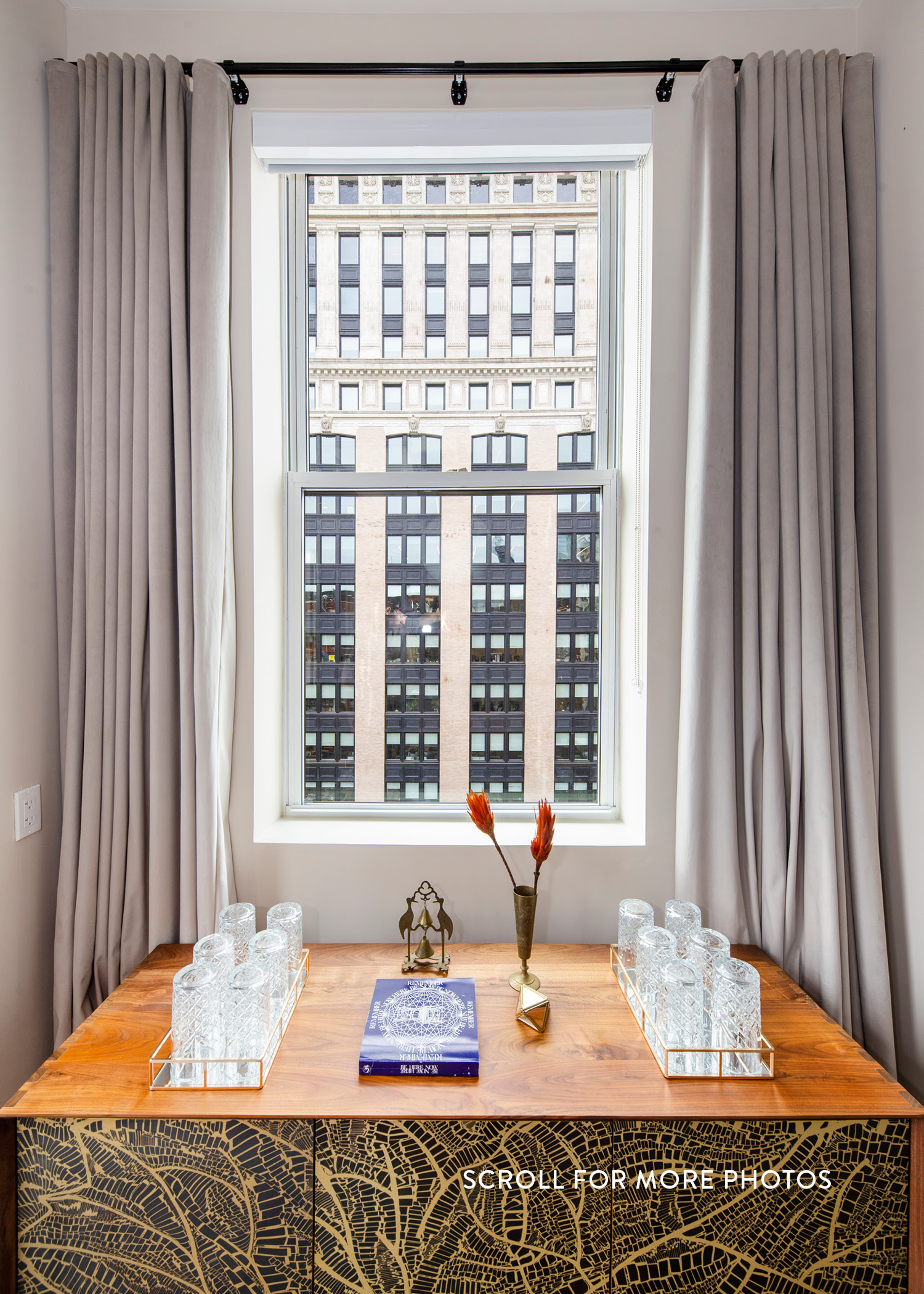

Series 100 Double Hung

https://smartbim-library-production.s3.amazonaws.com/manufacturers/7994275c-f23e-4028-87a2-3d97c506f430/products/78f24cf6-dde4-4523-ae7e-febbc5f1e93b/9c57cbe2-229c-459c-9f4a-449a65e23af9/Series 100 Double Hung - 331 Park Avenue South.jpg

Category

Double Hung

Description


The Skyline Series 100 Double Hung windows are an extraordinary family of windows that can be manufactured in a variety of shapes and sizes. The Series 100 windows adhere to modern performance standards while preserving classic architectural features from the past. Skyline’s in-house engineering team designs every feature of the Series 100 to replicate a multitude of existing window designs ranging from historical to modern by utilizing custom colors, historical metal trim, hand applied muntin grids and more. Harnessing modern technology such as Low-E coated insulated glass packages, a 4-1/2” deep window frame, triple weather stripping and ultra-lift balances, Skyline is capable of meeting or exceeding any modern day building requirements.

Features


- Architectural / Commercial / Historical

- Custodial operated tilt in sash for easy cleaning

- Glazing: 1" - 1 ¼” insulating glass

- Triple muntin capability, full simulated divided lites

- Triple weather-stripping for improved thermal and acoustical performance

- 4 ½" frame depth

- Thermal bar insulated frames and sash members

- High-performance balances for ease of operation

PropertyValue
AAMA RatingH-AW-50
Water Resistance12 PSF
Air InfiltrationASTM E 283 < 0.15 CFM / ft² @ 6.24 PSF
Thermal PerformanceU Value & SGHC Range from Code & better depending on Glass Specified
System Depth4.5"
OperationDouble Hung / Vertical Sliding

Product Resource download links.

DH 100_ FRAME DEPTH 4.5 INCH_DETAILS-DWG

DH 100_ FRAME DEPTH 4.5 INCH_DETAILS-PDF

DH 100i H_ FRAME DEPTH 5.5 INCH_DETAILS-DWG

DH 100i H_ FRAME DEPTH 5.5 INCH_DETAILS-PDF
