Product Information

Product Details

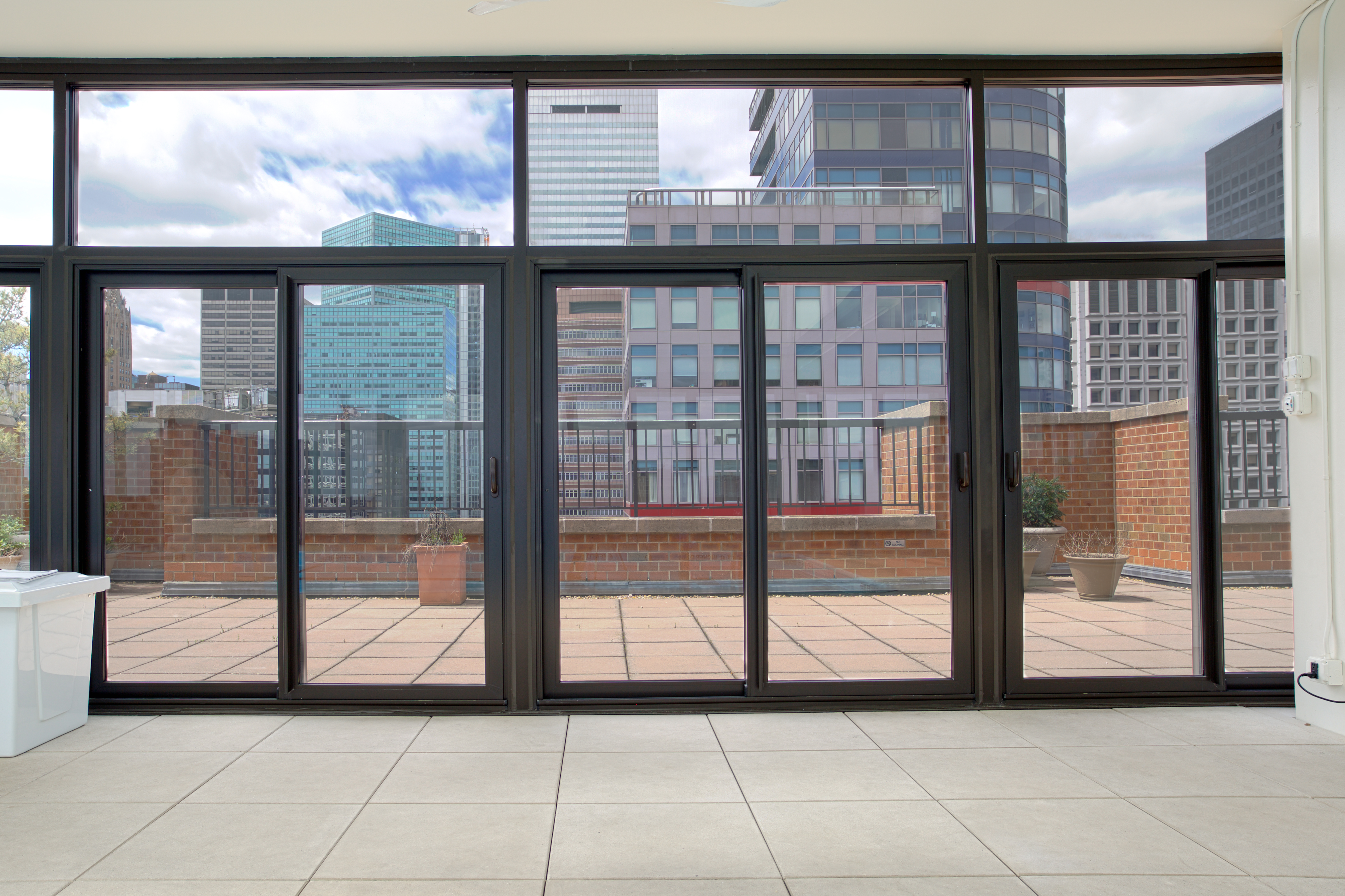

Series 2000 Lift & Slide Door

https://smartbim-library-production.s3.amazonaws.com/manufacturers/7994275c-f23e-4028-87a2-3d97c506f430/products/32cb20f5-2411-4ebe-88f6-dfe591d4be9c/8c13d17a-c6ac-429d-a89a-2024973d1d60/Series 2000 Lift & Slide Door - 300 East 54th.jpg

Category

Lift & Slide Door

Description


The Skyline Series 2000 Lift & Slide Door features a handle that rotates 180 degrees, lifting the operable sash off the tracks to disengage the weather-stripping and allow for extremely low friction operation. This feature sets the Series 2000 apart from competitors. Employing multi-lock hardware, the handle controls multiple locking points and provides ease of operation combined with high performance and resistance to tampering. While most sliding doors typically use a friction seal, ours has a compression seal which allows the door to have a low sill while maintaining high sill performance. Whether applied in a high-rise, townhouse, or suburban home, the Skyline Series 2000 Lift & Slide door will surely exceed your expectations.

Features


- Architectural / Commercial

- Various Sliding Options available up to 3-leaf frame capacity

- 1" Insulating Glass with Marine gasket

- Compression Gaskets for improved air/water/thermal and acoustical performance

- Unique T-Rex weeping system

- Tandem rollers used on sashes exceeding 198 lbs

- High performance AAMA Two Tone finishes

- Full Insect Screen

PropertyValue
AAMA RatingAW-PG50
Water Resistance8 LBS
Air InfiltrationASTM E 283 < 0.05 CFM / ft² @ 6.24 PSF
Thermal PerformanceU Value & SGHC Range from Code & better depending on Glass Specified

Product Resource download links.

CAD Details

Detail PDF
