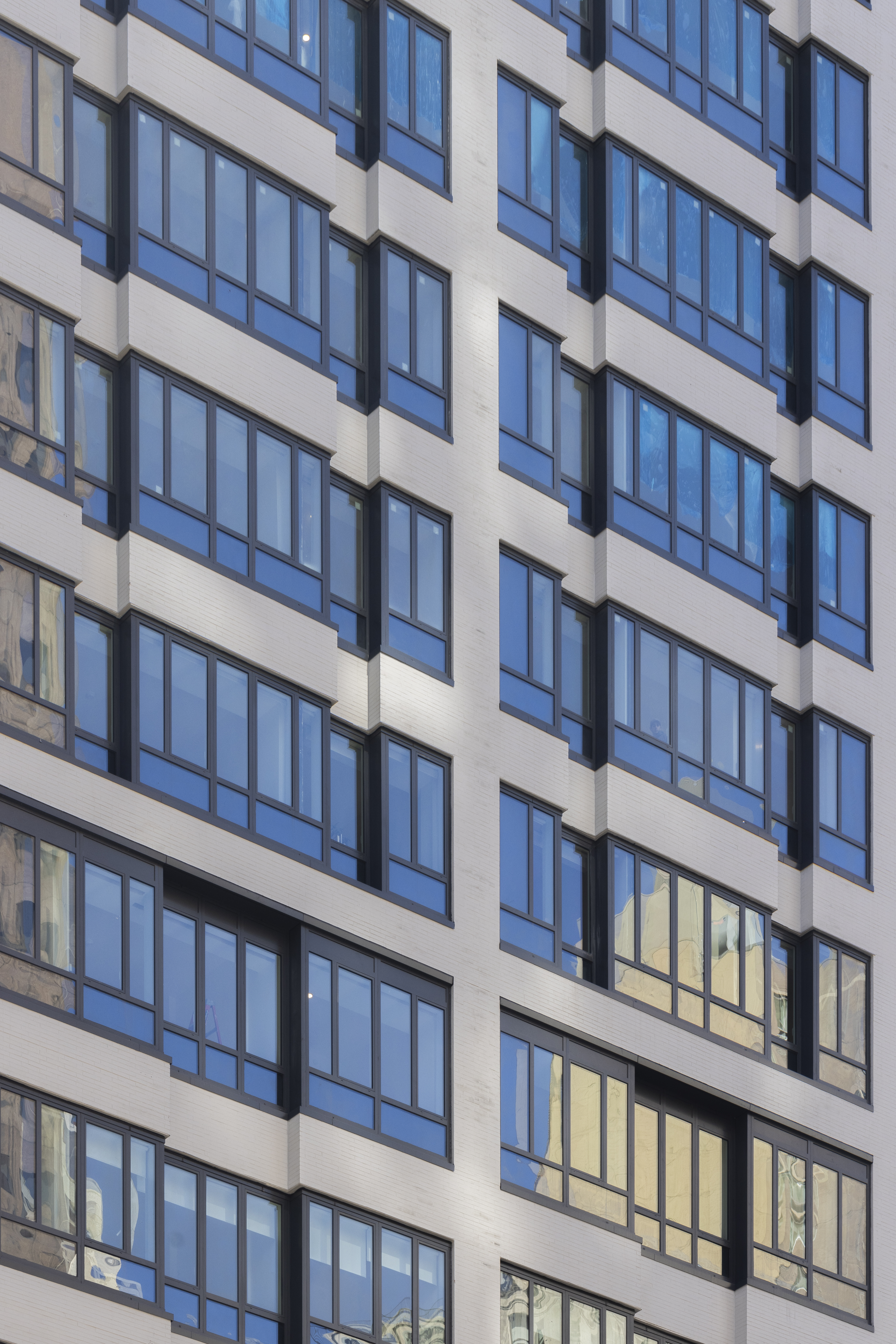

The Skyline Series 520 window is the perfect solution for Pre-fabricated wall systems. It is available with Inswing Casement
hardware or Tilt & Turn Dual Action hardware, or fully fixed windows, were required. The Series 520 performs at next to zero
leakage rates with very large sizes and heavy laminated glass packages; available with ADA friendly hardware. It tilts in at the
top for ventilation and opens in for easy cleaning. If you are seeking a functional and modern design with various frame depth
options, receptor systems, custom anchoring solutions to the Pre-fab wall then let's see what the Skyline Series 520 system has
for you. When you have oversized vents and require incremental control then consider using our 1220 version. 1220 will feature
roto crank hardware and ability for hardware to be located on the jamb or sill when required for ADA compliance.
- Architectural / Commercial
- Key capture for maintenance personnel and child safety.
- Removable hardware available for commercial applications. 520 lever handle, or 1220 Roto Crank.
- Structural and bead glazed options available
- Extruded corner key construction
- Glazing: 1” - 1 ¼” insulating glass
- Improved thermal performance
- Improved acoustical ratings
- Triple muntin capability, full simulated divided lites
- Continuous gasketed weather-stripping for unsurpassed performance
- Pressure equalized frame design
- 3 ¼” frame depth
- 3 ¼” receptor systems available
- Thermally insulated I-Strut frames
- Two Tone AAMA 2603, 2604, 2605 finishes available
